Installation Guide

Product Code: CS208MB
Finish: Matt Black
Material: Brass head, brass rail, brass bracket, stainless steel hose, ABS hand held

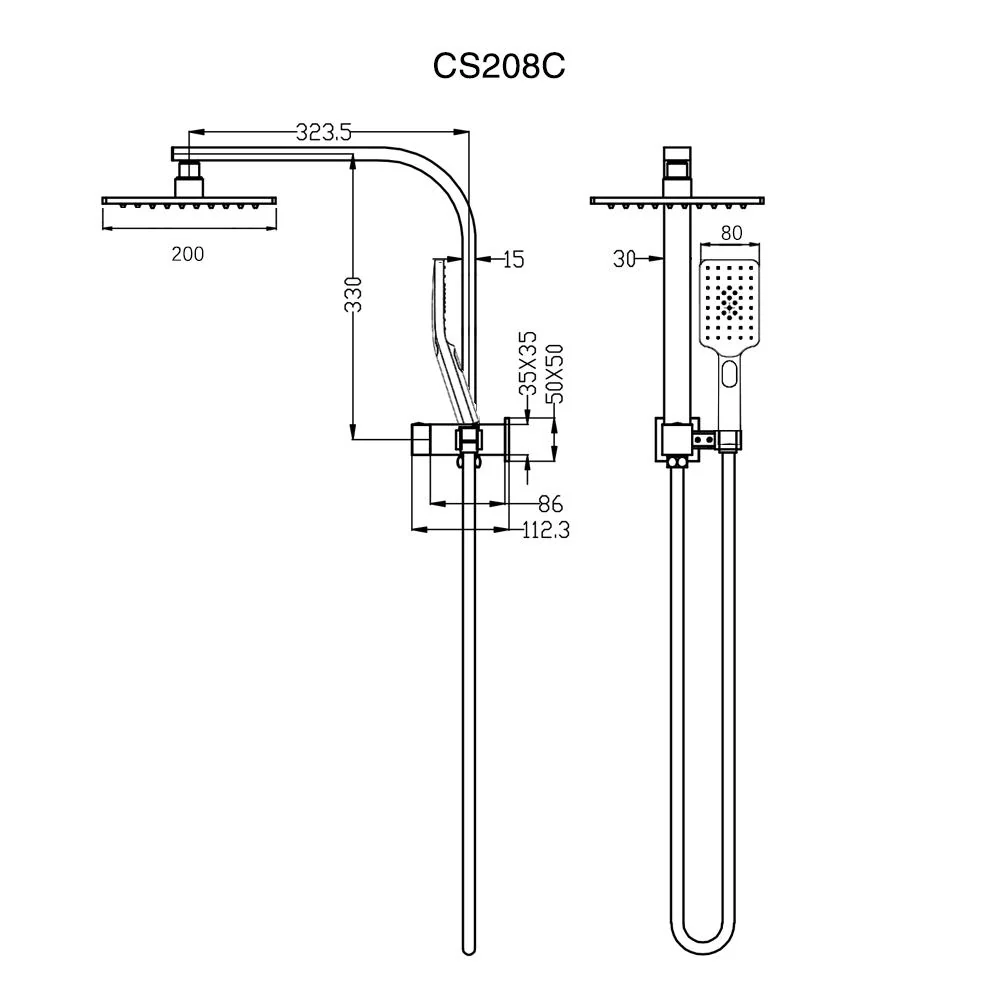

Height: 352mm (rail height)
Recommended Water Inlet Height: >1.8m from the floor
Shower head: Ø200mm
Hand shower: 3 spray options, angle adjustable
WELS Reg. No: S12850
WELS Rating: 3 Star 9L/min
Warranty:

• 10 years – brass body, shower head, wall elbow, shower arm, shower rail
• 5 years – hose, hand piece, slide bracket, diverter and finish

DISCLAIMER: All designs and measurements are intended as a guide and are subject to change without notice due to Arova's policy of continuous development. Please have the product on site before roughing in.

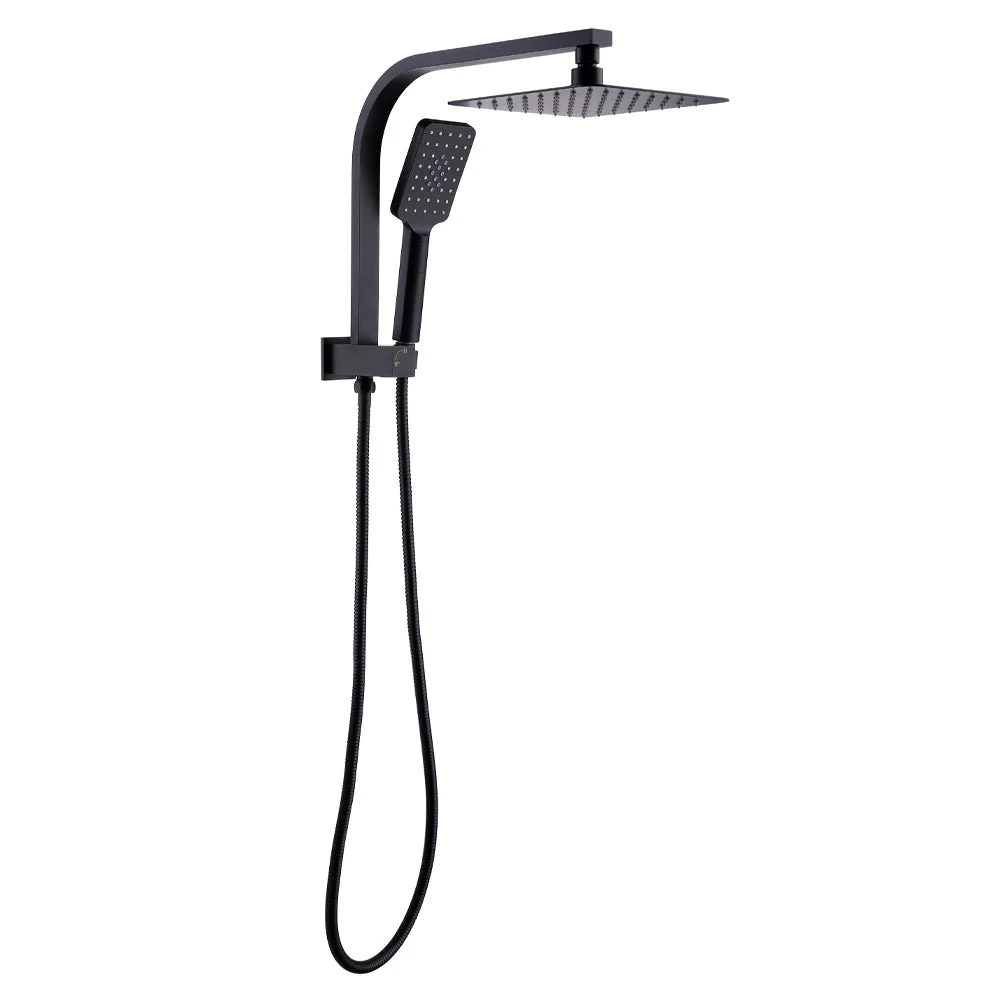

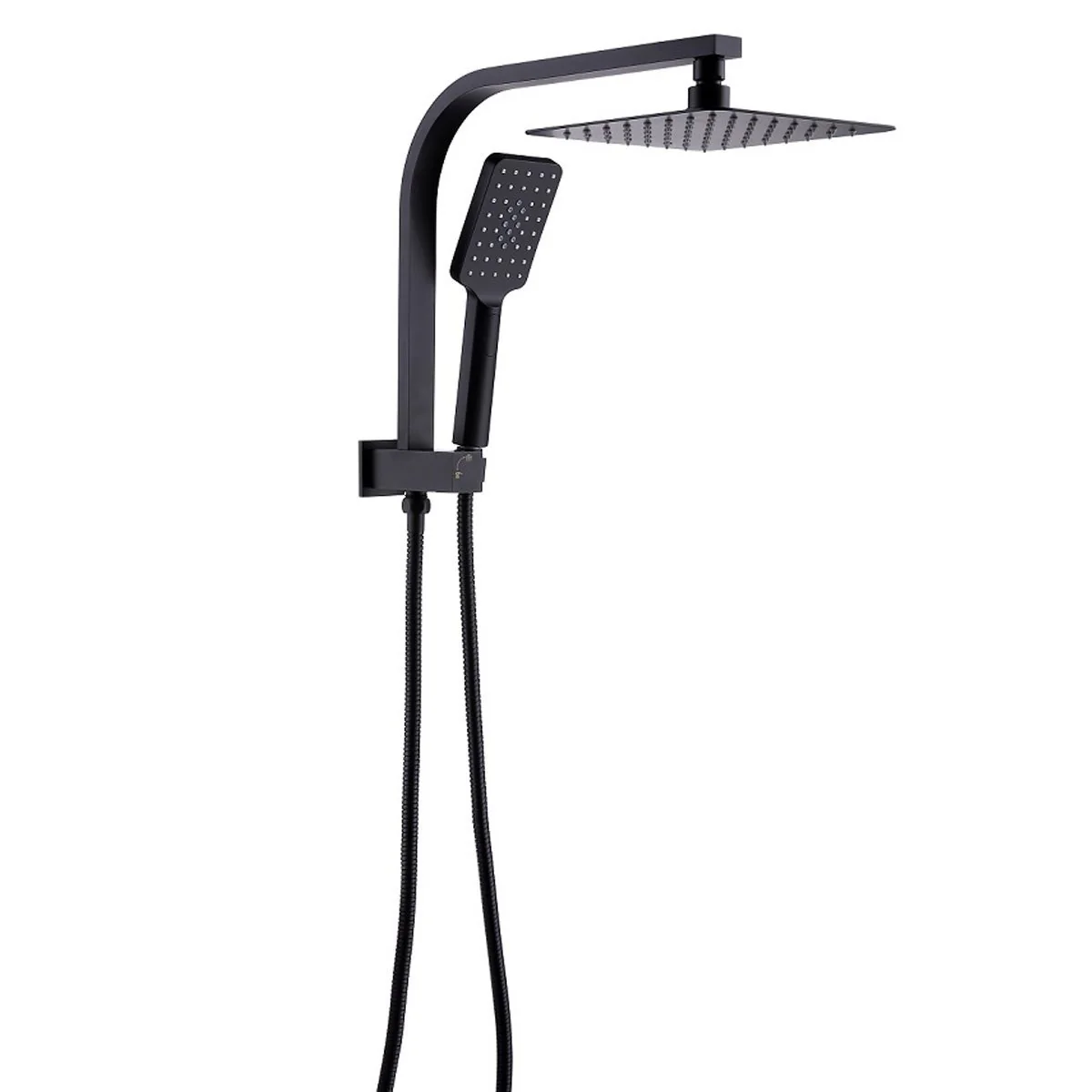

Compact Rain Shower System 2 In 1 Rail Matte Black VIVA

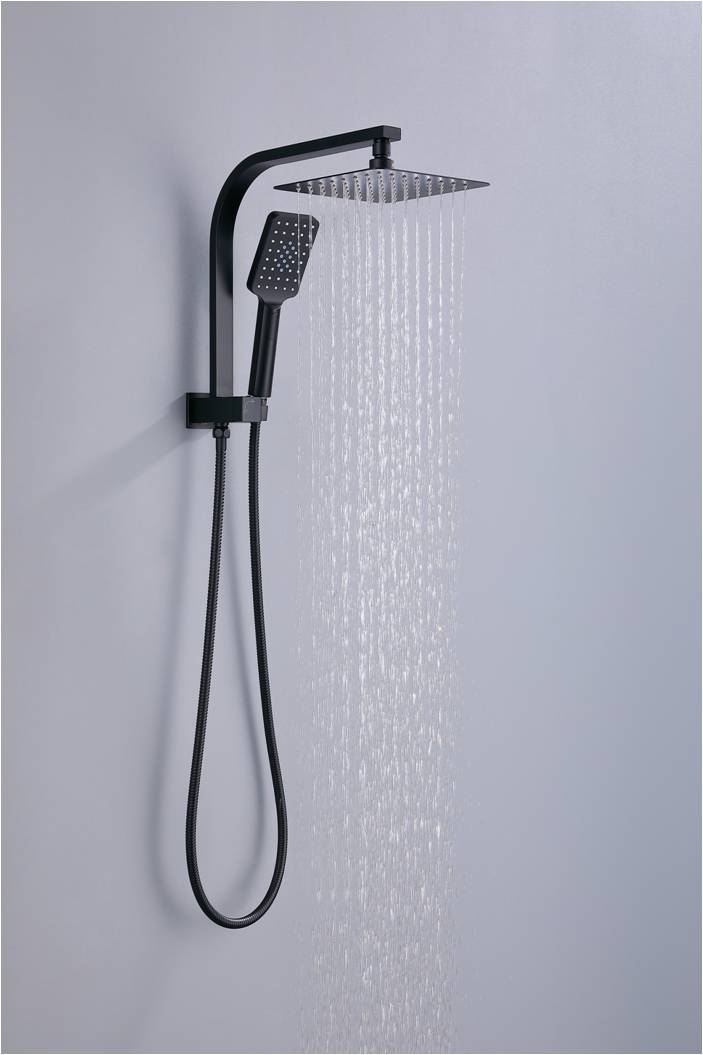

The CS208B Black square compact twin shower rail by Arova is a modern and stylish shower set that combines both an overhead rain shower and a hand held shower head in a stunning chrome finish. The 352m high shower features a construction of solid brass and a built-in divertor for an easy switch between an overhead rose and handheld shower head. When renovating, simply add a wall mixer in chrome with a square design to turn water on/off and adjust the flow.
